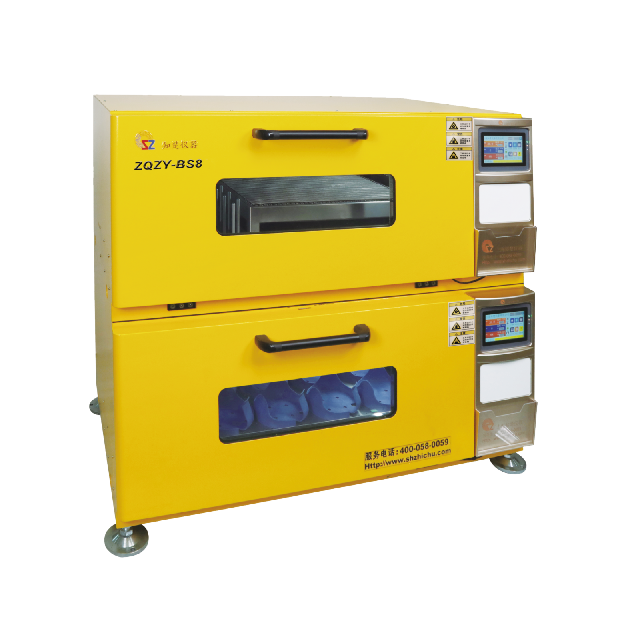

ZQZY-CS8 / ZQZY-BS8 / ZQZY-AS8 - Stacked Shaking Incubator with temperature control - Buy shaking incubator cell culture, shaking incubator function, shaking incubator definition Product on ZHICHU

1. Stack up to three units high, Space-saving and high-capacity.

2. Triple-eccentric drive is precisely counterbalanced to impart smooth, uniformmotion to all flasks

regardless of their position on the platform.

3. Audible and Visible Alarms alert the user and shuts off heaters to setpoint deviation.

4. Automatic restart after power interrupt with Non-Volatile Memory keeps studies running smoothly.

5. Streamlined shape, backing finish outer cover and stainless interior chamber with rounded corners easy

to clean and protect bacteria breeding.

6. Glides up door which is non-screw design and slide-out platform provide easy access to all samples.

Each machine operates independently.

7. High quality and low noise imported CFC free compressors ensure refrigeration effect and stable.

8. The EMC (Electromagnetic Interference) design makes machine more accurate and stable.

9. The running will stop when the door is open. It is more safe.

10. With ultraviolet sterilization function.

refrigerated shaking incubator

1. Seamless welding inner chamber, its bottom can be washed thoroughly.

2. Servo-motor makes speed control precisely and ensures high-speed performance and stability.

3. Insulating and tempered door glass as well as the stainless steel frames with heating function avoid

condensation effectively, also provides good view of incubating state without opening lids.

4. Special refrigerating process with adjustable cooling capacity makes temperature control more accuracy.

5. Timing frost-removing function, the timing range is 1to 89minutes and the defrost interval is

30-600 minutes adjustable, ensures machine working long time in low temperature without ice block.

6. LCD Touch Screen that making parameters setting and viewing easily. Such as:

a. The setting temperature, speed, time and the real temperature, speed, remaining time are

shown simultaneously.

b. Keyboard blocking prohibits miss operation.

c. Setting rotation direction is positive or reverse.

d. Setting circulation fan opens normally or automatically.

e. Data memory function can check the history record within 3 months.

f. Such data curves as temperature, speed can be displayed.

g. The data easily transfer through the USB interface.

7. The right side of the door is a whole molding design, the top 7 inch color touch screen,

the central board design,under the transparent box which registration card can be placed.

shaking incubator function

8. The plastic molding clamps make it easily to put and take flasks with one hand.

9. The humidity controller is optional which range is from room humidity to 95%.

shaking incubator accessories

Product Name	1-Unit Stacked Incubator Shaker	2-Units Stacked Incubator Shaker	3-Units Stacked Incubator Shaker
Model	ZQZY-AS8	ZQZY-BS8	ZQZY-CS8
Shaking Range	10-300rpm
Shaking Control	±1rpm
Orbit (diameter)	φ26mm(φ50mm)
Temp. Range	4℃~ 60℃(at 23℃～25 ℃)
Temp. Accuracy	±0.1℃
Temp. Uniformity	±0.6℃(at 37 ℃)
Display	LCD (Touch Screen)
Air circulation	Forced air circulation
Parameter Control	P.I.D Microprocessor
Max. Capacity (Stainless steel clamps)	single 250ml×66 or 500ml×45 or 1000ml×28 or 2000ml×15
Max. Capacity (Plastic moldingclamps)	single 250ml×60 or 500ml×40 or 1000ml×23 or 2000ml×15
Timer Range	0-999.9 hrs.
Platform Size (D×W)	single 928mm×530mm
Standard Platform	Universal Platform (Dedicated Platform optional)
Power Source	AC220±10% 50 ~ 60Hz
Overall Dimensions (D×W×H)	1360mm×845mm×630mm	1360mm×845mm×1185mm	1360mm×845mm×1740mm
Weight	255kg	461kg	647kg
Noise Level	<55dB
Internal Effective Height	345mm
